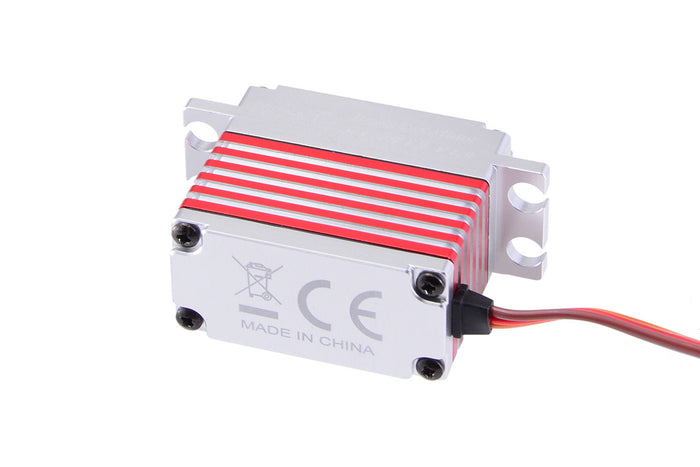

KST BLS915 V2.0 905X Brushless High-Voltage Metal Gear Servo
BLS805X Tail Servo
$72.64
Sale price
$72.64
Regular price
$99.50
Skip to product information
KST BLS915 V2.0 905X Brushless High-Voltage Metal Gear Servo
$72.64
Sale price
$72.64
Regular price
$99.50

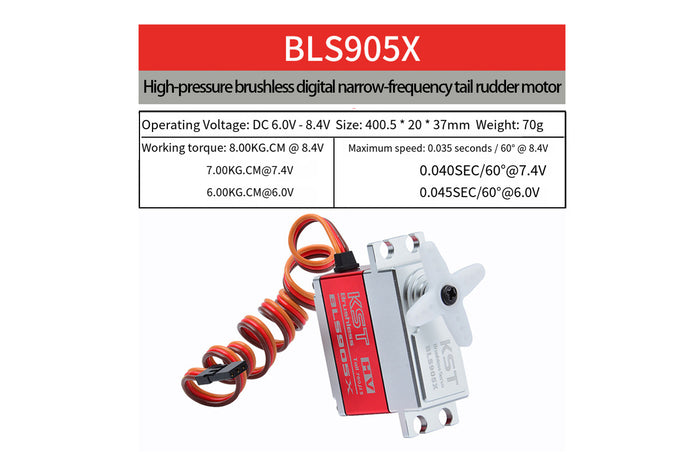

BLS905X V2.0
| Parameter | Specification |
| Operating Voltage (Rated) | DC 7.4V |
| Operating Voltage Range | DC 6V–8.4V |
| Torque |
6.0 kg·cm @ 6.0V 7.0 kg·cm @ 7.4V 8.0 kg·cm @ 8.4V |
| Speed |
0.045 sec/60° @ 6.0V 0.04 sec/60° @ 7.4V 0.035 sec/60° @ 8.4V |
| Operating Temperature Range | -10°C to +65°C |
| Case Dimensions | 40.5 × 20 × 38 mm |
| Weight | 76 g |
Application: Fit for 550–700 class helicopter tail. (适用于 550–700 级直升机尾舵)

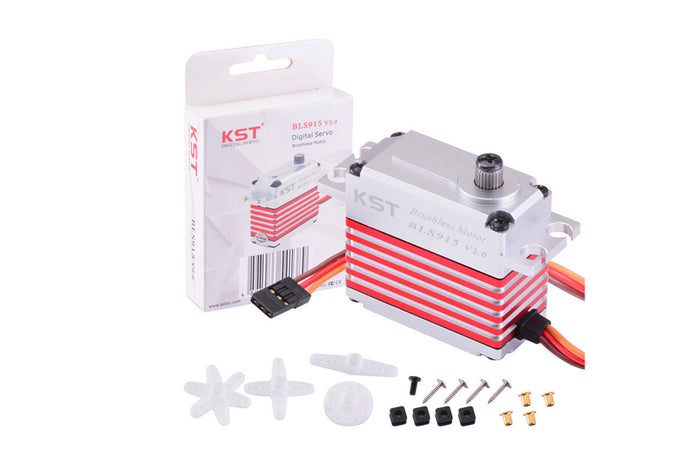

BLS915 V2.0
| Parameter | Specification |
| Operating Voltage (Rated) | DC 7.4V |
| Operating Voltage Range | DC 6V–8.4V |
| Torque |
18 kg·cm @ 6.0V 22 kg·cm @ 7.4V 25 kg·cm @ 8.4V |
| Speed |
0.09 sec/60° @ 6.0V 0.08 sec/60° @ 7.4V 0.07 sec/60° @ 8.4V |
| Travel Angle | ±50° when 1000–2000 µs |
| Operating Temperature Range | -10°C to +65°C |
| Case Dimensions | 40.5 × 20 × 38 mm |
| Weight | 78 g |
