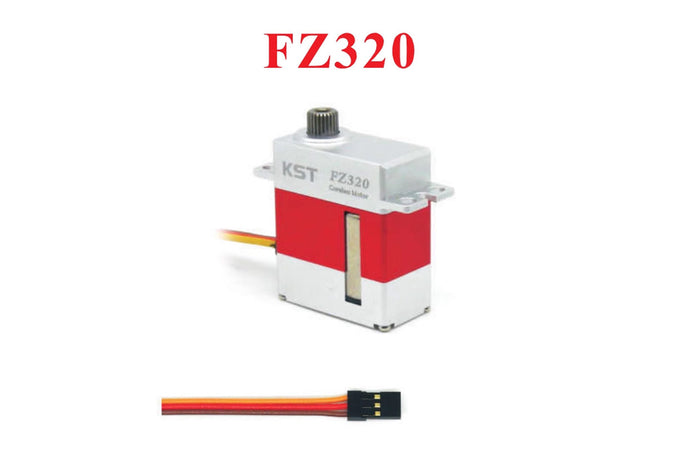

KST FZ320 Micro Digital Servo 7kg High Torque
FZ10
$87.12
Sale price
$87.12
Regular price
$121.00
Skip to product information
KST FZ320 Micro Digital Servo 7kg High Torque
$87.12
Sale price
$87.12
Regular price
$121.00

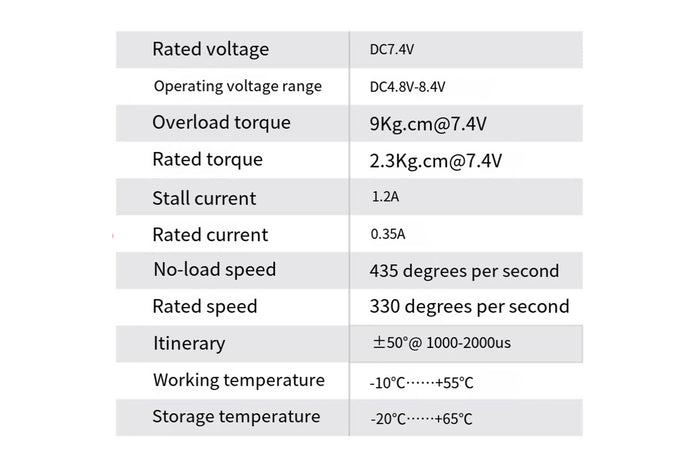

FZ10 Specifications Description
| Parameter | Specification |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 4.8V – 8.4V |
| Stall Torque | 9 Kg.cm @ 7.4V |
| Rated Torque | 2.3 Kg.cm @ 7.4V |
| Stall Current | 1.2A |
| Rated Current | 0.35A |
| No-Load Speed | 435 deg/sec |
| Rated Speed | 330 deg/sec |
| Travel Range | ±50° @ 1000–2000us |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +65°C |
FZ320 Specifications Description
| Parameter | Specification |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 4.8V – 8.4V |
| Stall Torque | 7 Kg.cm @ 7.4V |
| Rated Torque | 2 Kg.cm @ 7.4V |
| Stall Current | 1.2A |
| Rated Current | 0.3A |
| No-Load Speed | 660 deg/sec |
| Rated Speed | 500 deg/sec |
| Travel Range | ±50° @ 1000–2000us |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +65°C |
