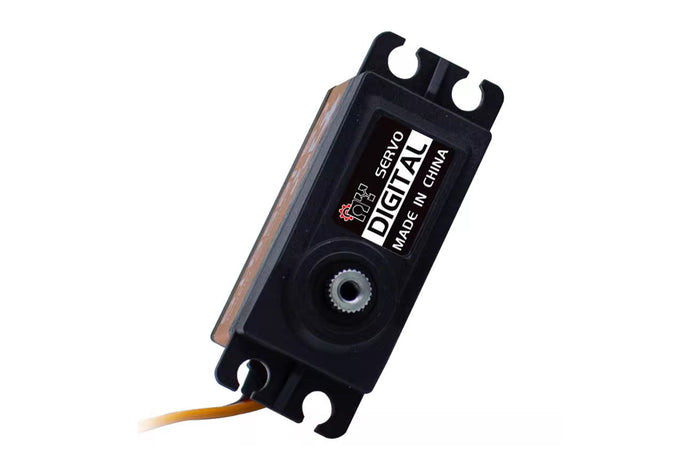

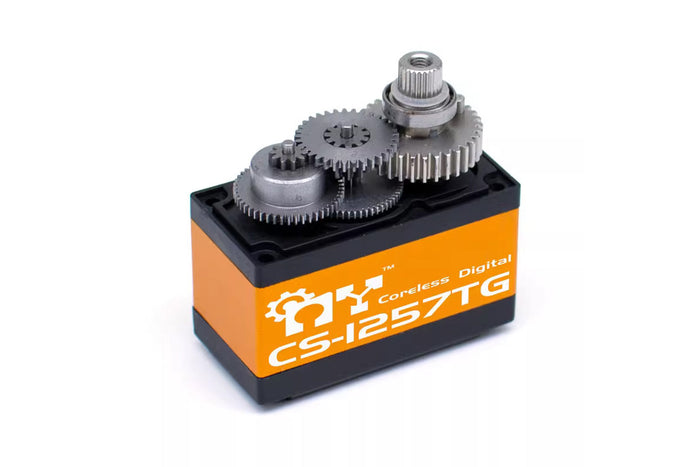

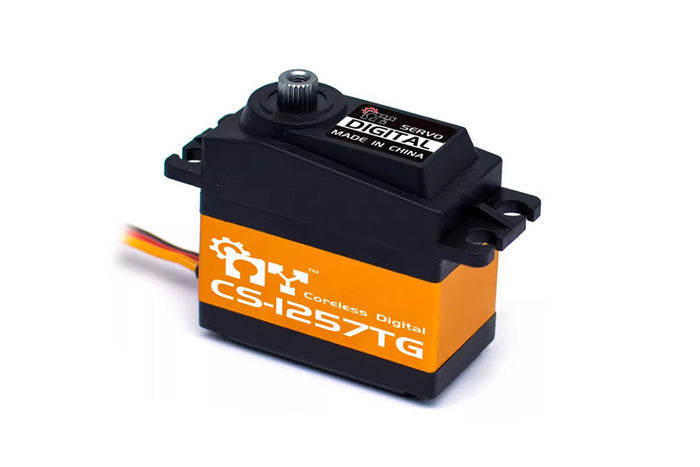

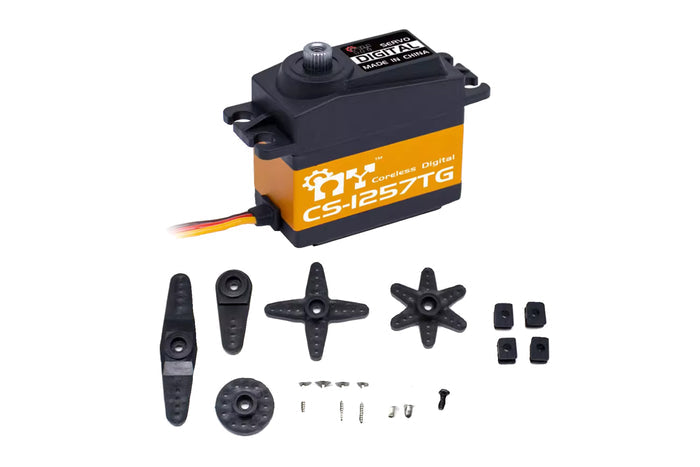

MY CS 1257TG Coreless Metal Gear Servo

CS-1257TG 6.0V / 0.07s / 10kg High-Torque Titanium Alloy Metal Gear Coreless Standard High-Speed Digital Servo

Product Features

• 6.0V 10kg High-Performance Coreless Standard Digital Servo

• High-Precision Taiwan-Made Titanium Alloy & Aluminum Gears

• 6V 0.07s Standard High-Speed Digital Servo

• Aluminum Middle Case Structure

• Dual Ball Bearings

• Genuine JR Plug

• High Torque, Ultra-Long Lifespan, Low Noise

• 32-Bit Programmable Servo

Detailed Specifications

• Model: CS-1257TG

• Brand: MY — Mingyang

• Dead Band: 3 μs

• Working Frequency: 1520 μs / 330Hz

• Motor: Coreless Motor

• Operating Speed (4.8V): 0.09 sec / 60°

• Operating Speed (6.0V): 0.07 sec / 60°

• Stall Torque (4.8V): 8.0 kg·cm

• Stall Torque (6.0V): 10.0 kg·cm

• Dimensions: 40.3 x 20.2 x 37.2 mm

• Weight: 64 g

• Connector Wire Length: JR 265 mm

• Bearing: 2BB

• Output Gear Spline: 25T
