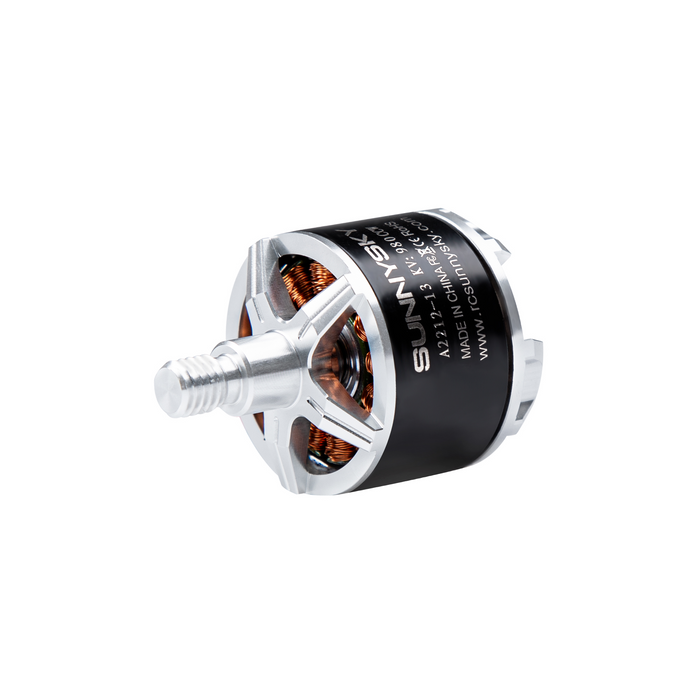

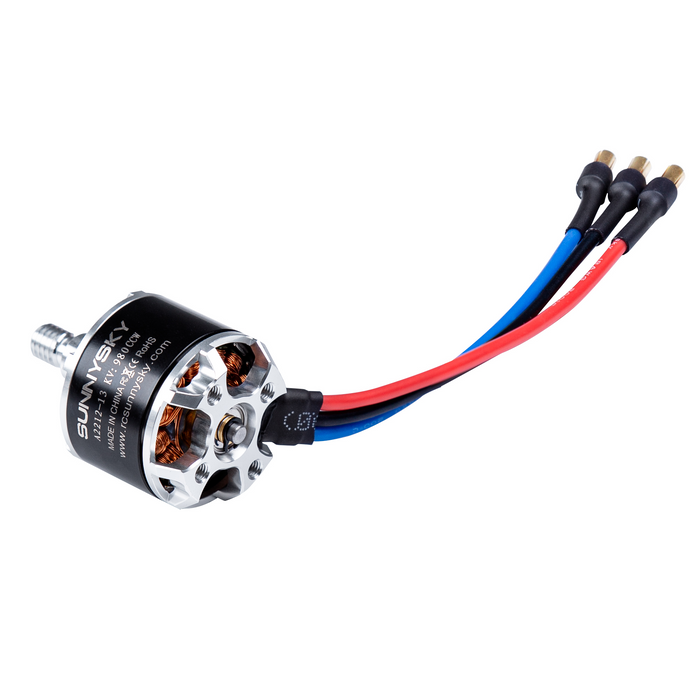

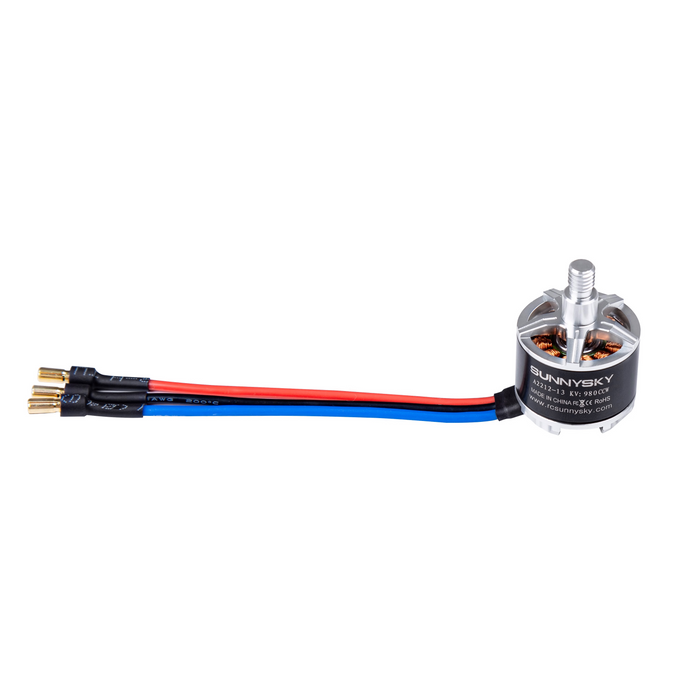

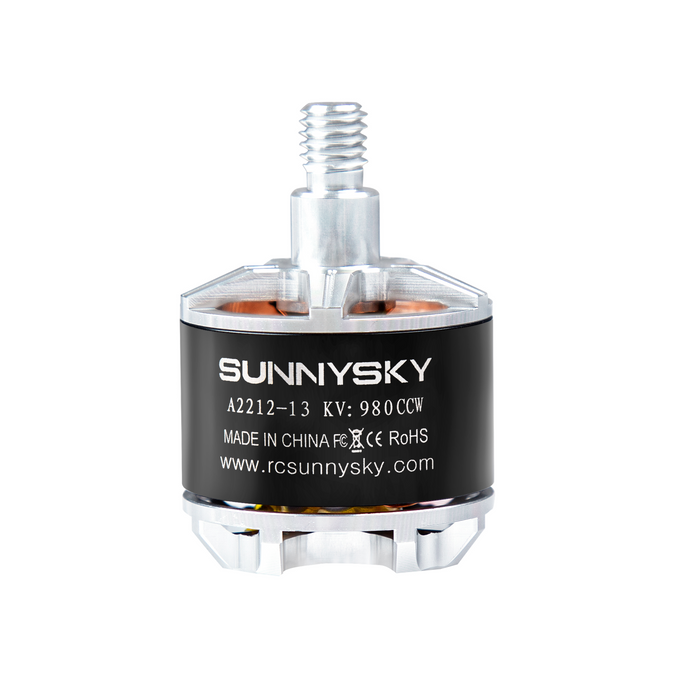

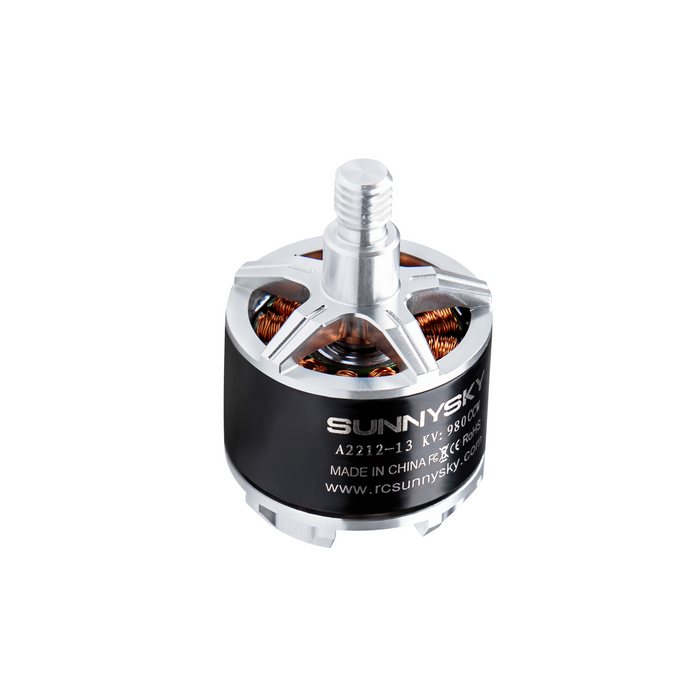

SunnySky A2212 980KV Brushless Motors Multirotor Version

$8.80

$8.80 $11.00

$8.80

$8.80 $11.00

SUNNYSKY GREAT PERFORMANCEWITH COMPETITIVE PRICE

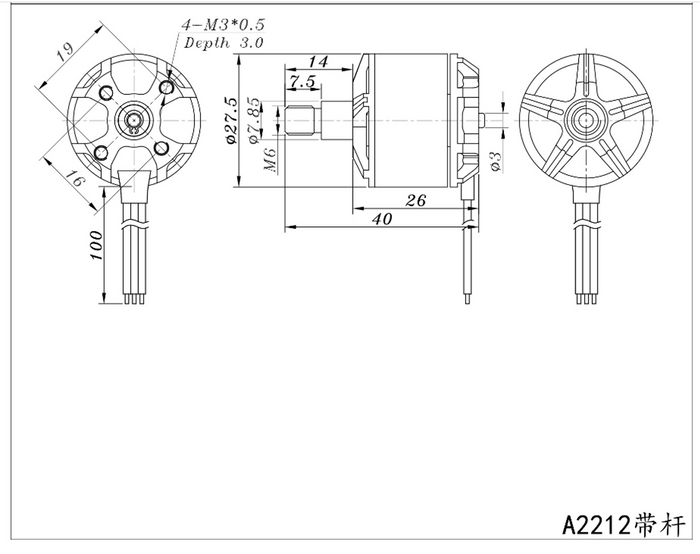

Specifications	A2212 KV980
Stator Diameter	定子外径	22mm
Stator Thickness	定子厚度	12mm
No.of Stator Arms	定子槽数	12
No.of Rotor Poles	转子极数	14
Motor Kv	电机KV值	980
No-Load Current (A/10V)	空载电流	0.7A
Motor Resistance	电机电阻	123mΩ
Max Continuous Current	最大连续电流	20A/30s
Max Continuous Power	最大连续功率	330w
Weight	重量(含长线)	56g
Rotor Diameter	转子直径	27.5mm
Body Length	电机长度	40mm
Max Lipo Cel	最大电池节数	3-4S
ESC	建议使用电调	20A
Recommended Prop(inch)	推荐螺旋桨规格	9450

Prop (inch)	Volts (V)	Amps (A)	Thrust (gf)	Watts (W)	Efficiency (g/W)	Load temperature in
						100%throttle
						全油门负载温度
9450	11.1	0.9	100	10	10.01
		1.9	200	21	9.48
		3.2	300	36	8.45
		4.6	400	51	7.83
		6.2	500	69	7.27
		8	600	89	6.76
		10.2	720	113	6.36
	12.5	0.7	100	9	11.43
		1.7	200	21	9.41
		2.9	300	36	8.28
		4.2	400	53	7.62
		5.6	500	70	7.14
		7.3	600	91	6.58
		9	700	113	6.22
		11.9	860	149	5.78
	14.8	0.6	100	9	11.26
		1.5	200	22	9.01	112℃
		2.5	300	37	8.11	112℃
		3.7	400	55	7.30
		5	500	74	6.76
		6.4	600	95	6.33
		8	700	118	5.91
		9.7	800	144	5.57
		11.6	900	172	5.24
		13.5	1000	200	5.01
		15	1090	222	4.91
	16.5	0.5	100	8	12.12
		1.4	200	23	8.66
		2.3	300	38	7.91
		3.5	400	58	6.93
		4.6	500	76	6.59
		6	600	99	6.06
		7.5	700	124	5.66
		8.9	800	147	5.45
		10.5	900	173	5.19
		12.5	1000	206	4.85
		14.3	1100	236	4.66
		16.6	1220	274	4.45
Notes:The test condition of temperature is motor surface temperature in 100%throttle while the motor run 10 min.
