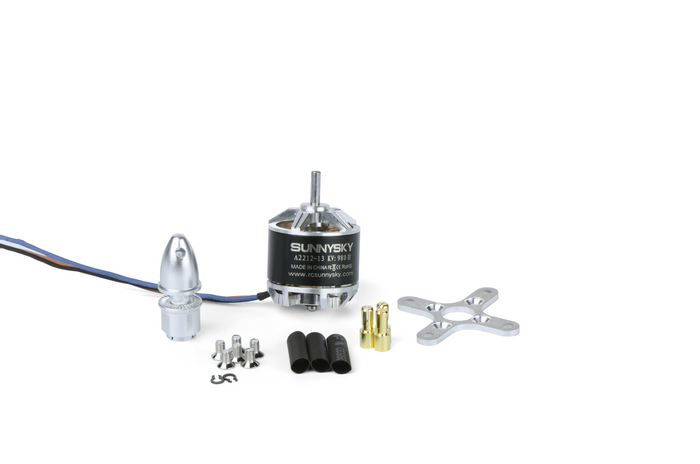

SunnySky A2212 Brushless Motors

KV980

$8.58

$8.58 $11.00

SunnySky A2212 Brushless MotorsSunnySky A2212 Brushless MotorsUAVMODEL

SunnySky A2212 Brushless Motors

SunnySky A2212 Brushless Motors

$8.58

$8.58 $11.00

TYPE KV980 KV1250 KV1400 KV2450

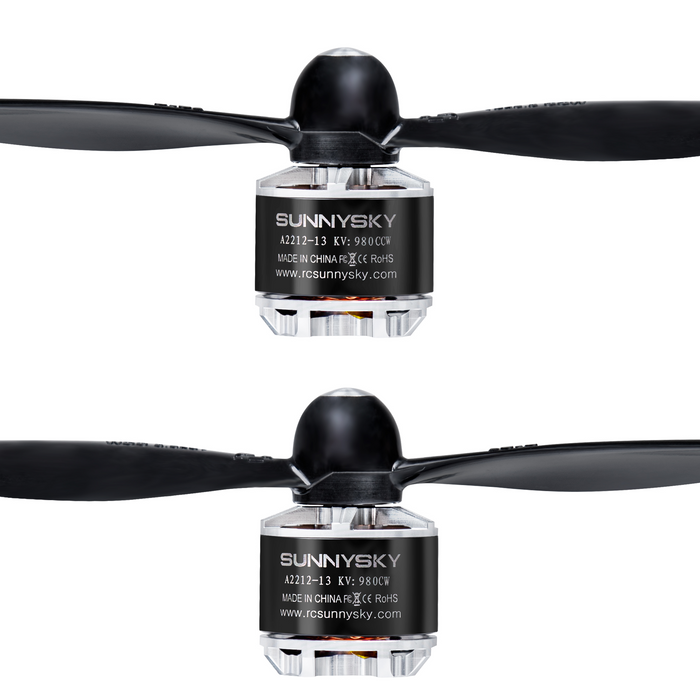

KV980:

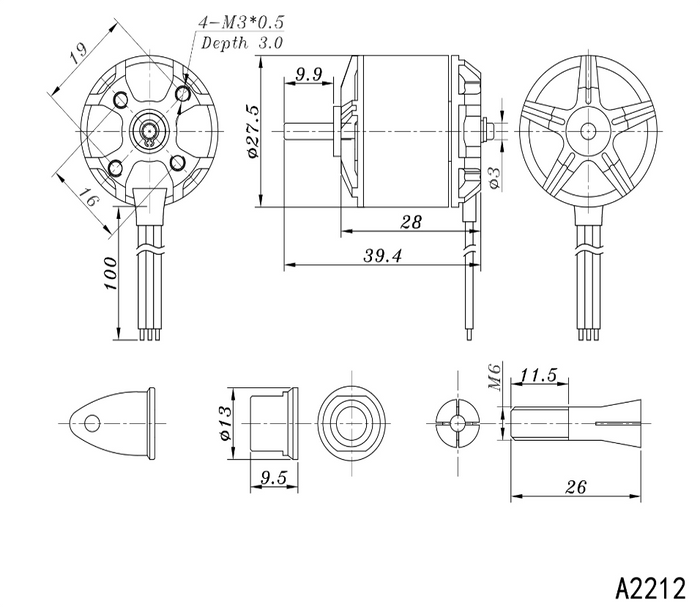

Stator Diameter	22mm	Weight	56g
Stator Thickness	12mm	Rotor Diameter	27.5mm
No.of Stator Slots	12	Body Length	40mm
No.of Rotor Poles	14	Max Lipo Cell	3-4S
Motor Kv	980	ESC	20A
No-load current	0.7A/10V	Recommended Prop(inch)	9045
Motor Resistance	123mΩ
Max Continuous Current	20A/30s
Max Continuous Power	330W

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
9450	11.1	0.9	100	10	10.01	112℃
		1.9	200	21	9.48
		3.2	300	36	8.45
		4.6	400	51	7.83
		6.2	500	69	7.27
		8	600	89	6.76
		10.2	720	113	6.36
	12.5	0.7	100	9	11.43
		1.7	200	21	9.41
		2.9	300	36	8.28
		4.2	400	53	7.62
		5.6	500	70	7.14
		7.3	600	91	6.58
		9	700	113	6.22
		11.9	860	149	5.78
	14.8	0.6	100	9	11.26
		1.5	200	22	9.01
		2.5	300	37	8.11
		3.7	400	55	7.3
		5	500	74	6.76
		6.4	600	95	6.33
		8	700	118	5.91
		9.7	800	144	5.57
		11.6	900	172	5.24
		13.5	1000	200	5.01
		15	1090	222	4.91
	16.5	0.5	100	8	12.12
		1.4	200	23	8.66
		2.3	300	38	7.91
		3.5	400	58	6.93
		4.6	500	76	6.59
		6	600	99	6.06
		7.5	700	124	5.66
		8.9	800	147	5.45
		10.5	900	173	5.19
		12.5	1000	206	4.85
		14.3	1100	236	4.66
		16.6	1220	274	4.45

KV1250:

Specifications				A2212
Stator Diameter				22mm			定子外径
Stator Thickness				12mm			定子厚度
No.of Stator S1ots				12			定子槽数
No.of Rotor Poles				14			转子极数
Hotor Kv				1250			电机KV
NO-Load Current(A/10V)				0.7A			空载电流
Motor Resistance				97mΩ			电机电阻
Max Continuous Current				27A/30s			最大连续电流
Iax Continuous Power				453.6w			最大连续功率
Weight				46g			重量
Rotor Diameter				27.5mm			转子直径
Body Length				30mm			电机长度
Max Lipo Cel1				3-4S			支持锂电节数
ESC				30A			建议使用电调
Recommend Prop(inch)				8060			推荐螺旋桨规格
Prop	Volts	Anps	Thrust(g	Watts(W)	Efficiency	RFM	全油门负载温度
(inch)	(V	(A)	Thrust(g	Watts(W)	Efficiency	RFM	全油门负载温度
8060	11.1	1.4	100	15.54	6.44	3952
		3.2	200	35.52	5.63	5540
		5.4	300	59.94	5.01	6748
		7.7	400	85.47	4.68	7817
		10.5	500	116.55	4.29	8656
		14.5	615	160.95	3.82	9445
	12.5	1.2	100	15	6.67	3928
		2.9	200	36.25	5.52	5564
		4.9	300	61.25	4.90	6784
		7.1	400	88.75	4.51	7836
		9.6	500	120	4.17	8665
		12.8	600	160	3.75	9381
		17.1	735	213.75	3.44	10226	10nin 55℃
	14.8	1.1	100	16.28	6.14	3935
		2.5	200	37	5.41	5619
		4.3	300	63.64	4.71	6786
		6.2	400	91.76	4.36	7622
		8.5	500	125.8	3.97	8602
		11.3	600	167.24	3.59	9326
		13.7	700	202.76	3.45	10065
		17.6	800	260.48	3.07	10713
		22.6	960	334.48	2.87	11437
	16.8	1	100	16.8	5.95	3962
		2.3	200	38.64	5.18	5541
		3.9	300	65.52	4.58	6724
		5.6	400	94.08	4.25	7618
		7.7	500	129.36	3.87	8615
		10.2	600	171.36	3.50	9362
		12.9	700	216.72	3.23	10037
		16	800	268.8	2.98	10741
		19.9	900	334.32	2.69	11221
		23.6	1000	396.48	2.52	11903
		26.9	1120	451.92	2.48	12335	45s 88℃

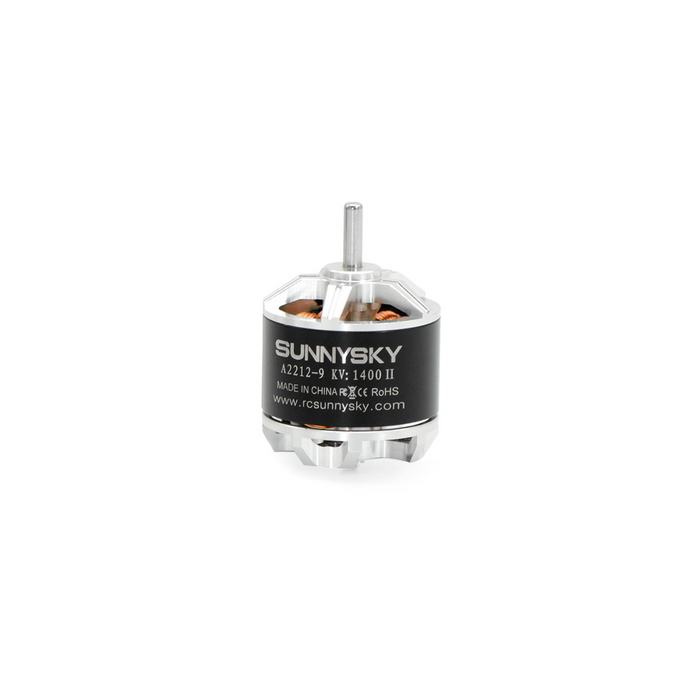

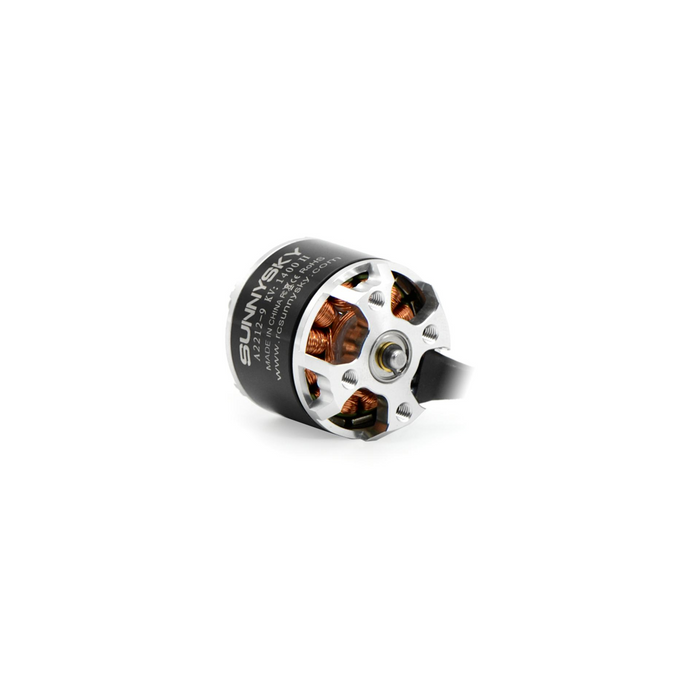

KV1400:

Specifications	A2212
Stator Diameter	22mm		定子外径
Stator Thickness	12mm		定子厚度
No.of Stator S1ots	12		定子槽数
No.of Rotor Poles	14		转子极数
Motor Kv	1400		电机KV
NO-Load Current(A/10V)	0.9A		空载电流
Motor Resistance	76m82		电机电阻
Max Continuous Current	25A/30s		最大连续电流
Max Continuous Power	420w		最大连续功率
Veight	5lg		重量
Rotor Diameter	27.5mm		转子直径
Body Length	30mm		电机长度
Max Lipo Ce11	3-4S		支持锂电节数
ESC	30A		建议使用电调
Recommend Prop(inch)	70508060		推荐螺旋桨规格

Prop	Volts	Anps	Thrust(g)	Vatts(W	Efficieney (g/W	RFH	全油门负载温度
(inch)	(V	A	Thrust(g)	Vatts(W	Efficieney (g/W	RFH	全油门负载温度
8060	11.1	1.4	100	15.54	6.44	3828
		3.3	200	36.63	5.46	5445
		5.6	300	62.16	4.83	6711
		8	400	88.8	4.50	7634
		10.5	500	116.55	4.29	8593
		13.5	600	149.85	4.00	9323
		18.8	750	208.68	3.59	10192
	12.5	1.3	100	16.25	6.15	3859
		3	200	37.5	5.33	5501
		5	300	62.5	4.80	6680
		7.3	400	91.25	4.38	7668
		9.8	500	122.5	4.08	8506
		12.6	600	157.5	3.81	9248
		16	700	200	3.50	10035
		22.4	880	280	3.14	11049	1nin 20s 60℃
7050	14.8	1.2	100	17.76	5.63	5264
		2.8	200	41.44	4.83	7368
		4.6	300	68.08	4.41	8911
		6.8	400	100.64	3.97	10221
		9.4	500	139.12	3.59	11445
		12.2	600	180.56	3.32	12231
		15.4	700	227.92	3.07	13225
		20.4	850	301.92	2.82	14346
	16.8	1.1	100	18.48	5.41	5291
		2.5	200	42	4.76	7379
		4.2	300	70.56	4.25	8917
		6.3	400	105.84	3.78	10213
		8.7	500	146.16	3.42	11440
		11.3	600	189.84	3.16	12234
		14.3	700	240.24	2.91	13312
		17.6	800	295.68	2.71	14004
		21.1	900	354.48	2.54	14913
		24.7	1010	414.96	2.43	15592	50s 70℃

KV2450:

Specifications				A2212
Stator Diameter				22mm			定子外径
Stator Thickness				12mm			定子厚度
No.of Stator Slots				12			定子槽数
No.of Rotor Poles				10			转子极数
Hotor Kv				2450			电机KV
NO-Load Current(A/10V)				1.7A			空载电流
Motor Resistance				32mΩ			电机电阻
Max Continuous Current				28A/30s			最大连续电流
Max Continuous Power				350w			最大连续功率
Weight				54g			重量
Rotor Diameter				27.5mm			转子直径
Body Length				30mm			电机长度
Max Lipo Cel1				3S			支持锂电节数
ESC				30A			建议使用电调
Recommend Prop(inch)				50405045			推荐螺旋桨规格
Prop	Volts	Amps	Thrust(g)	Tatts(W)	Efficiency	RPI	全油门负载温度
(inch)	(V)	(A)	Thrust(g)	Tatts(W)	Efficiency	RPI	全油门负载温度
5040	11.1	1.9	100	21.09	4.74	8321
		4.4	200	48.84	4.10	11745
		7.3	300	81.03	3.70	14102
		10.4	400	115.44	3.47	16420
		13.5	500	149.85	3.34	18168
		17.3	600	192.03	3.12	20166
		22.9	760	254.19	2.99	22253
	12.5	1.7	100	21.25	4.71	8257
		4	200	50	4.00	11661
		6.6	300	82.5	3.64	14184
		9.5	400	118.75	3.37	16357
		12.6	500	157.5	3.17	18147
		15.7	600	196.25	3.06	20179
		19.6	700	245	2.86	21753
		23.3	800	291.25	2.75	23055
		27.6	910	345	2.64	24857	45℃
5045	11.1	2.1	100	23.31	4.29	9297
		4.8	200	53.28	3.75	12727
		7.8	300	86.58	3.47	15294
		10.9	400	120.99	3.31	17247
		14.5	500	160.95	3.11	19258
		20.2	640	224.22	2.85	21722
	12.5	1.9	100	23.75	4.21	9235
		4.3	200	53.75	3.72	12660
		7	300	87.5	3.43	15265
		10.1	400	126.25	3.17	17261
		13.4	500	167.5	2.99	19286
		17	600	212.5	2.82	21147
		24.5	780	306.25	2.55	24012	48℃
